Below are a few additional samples of my Vectorworks drafting – first, a digitization of Richard Nelson’s overhead plot for Sunday in the Park with George, updated with modern unit-types.
More samples to come!

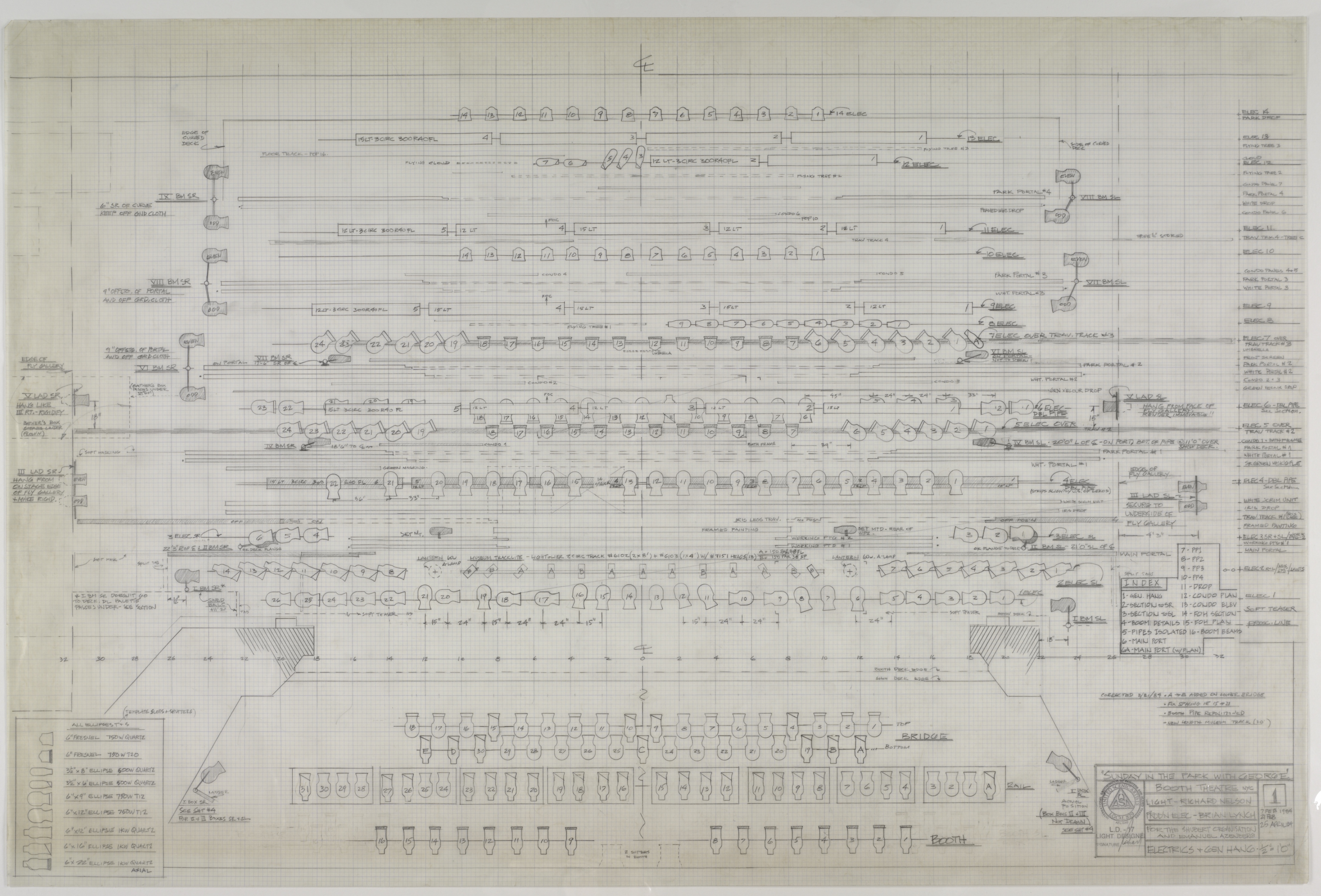

Richard Nelson’s original hand-drafted plot, accessed through The Lighting Archive.

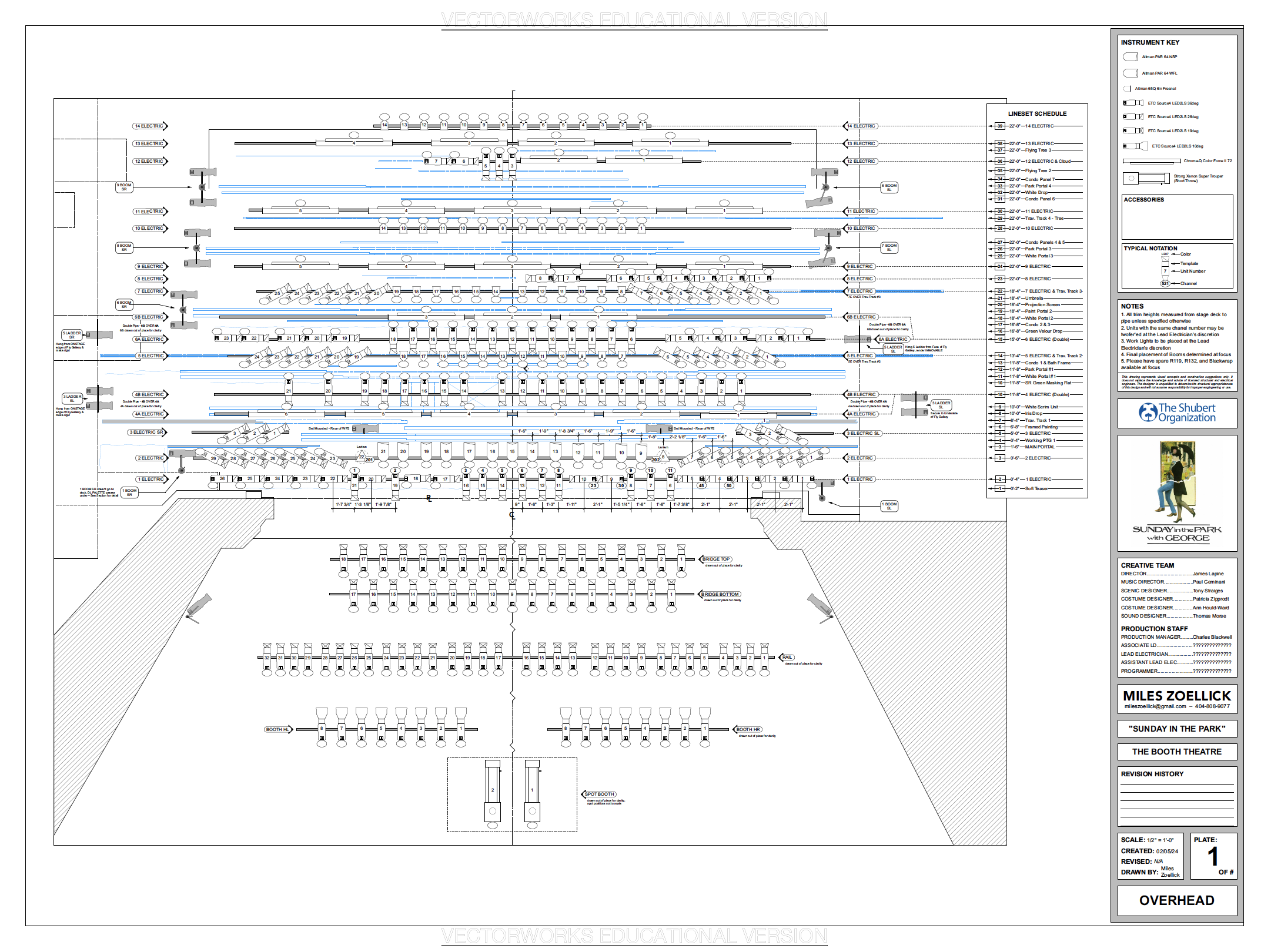

My digitization and updating of Nelson’s plot, drafted in Vectorworks. PDF download available for readability.
